Customized Powder Metallurgy Sintered Metal Parts Oil Pump Parts
Product Description

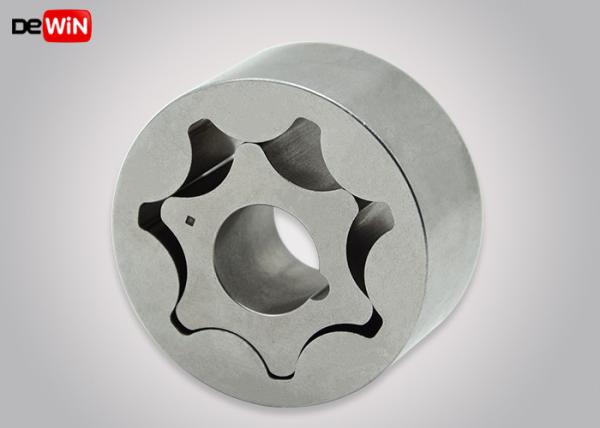

The gear rotor combines with the oil pump, and the inner and outer
rotor and eccentrically placed inside the pump housing. the outer
has one more tooth than inner one. the tooth tip of the outer and
inner rotor forms the chamber. When the inner rotor is driven to
rotate, the shaft is inserted into its inner hole, and the outside
of the outer rotor is restricted in the case, meshing with which
the inner rotor receives torque and rotates in the same way.
Product Advantages
1, Oil pump rotor can reduce friction loss.
2, Powder metallurgy gear rotor has low production cost and high
production efficiency.
3, Maintenance-free, high hardness and density, long working life.
Product Application
The internal gear oil pump rotor is widely used in automobile
engine, diesel engine and transmission.
Product Specification
Product Name | Oil Pump Gear Rotor |
| Material Detail | Steel Base Alloy, F-0000-15 |
| Tolerance Standard | ISO 2768 - m/H14, h14, +- IT14/2 |
Material Standard | MPIF35, DIN30910, JIS Z2550 |
| Technology | Powder Metallurgy - Sintering - Machining |
| Appearance | No Crumbling, Cracks, Exfoliation, Voids, Metal Pitting Defects |
| Apparent Hardness | 60 HRF |
| Product Density | 6.8 g/cm³ |
| Tensile Strength | 1000 Mpa |
| Yield Strength | 140-260 Mpa |
Inspection
1.Each product are carefully inspection from production to
completion.
2.Regularly scheduled dimensional production checks using the
latest in applicable measuring technology
3.Products are carefully inspected from packaging to shipping.
Product Packaging
Inner Packing: 10 Pieces per Plastic tray, Vacuum Plastic bubble
paper.
Outer Packing: 500 Pieces per Hard Carton
Shipment Packing: 10 Cartons per Wooden Case or Pallet
Shipping Term: By Express, Air, Land, Sea.
Delivery Term: FOB, CFR, CIF, EXW
Competitive Advantage
1. We provide products with good quality at competitive price for
clients in quick delivery.
2. Always immediate and best after-sale service.
3. 100% all testing and providing test reports.
4. Our clients distribute widely, Such as, Germany, Norway, Poland,
Spain, UK, France, Russia,USA, Canada, Brazil, Mexico, Australia,
Japan, Thailand, Indonesia, and many other countries.
