Light Weight Self Lubricating Bronze Bushings , High Speed Bronze
Graphite Bushings
Product Specification
| Product Name | Self Lubricating Steel Bushings |
| Material Details | Steel base, Sintered bronze powder, PTFE layer |
Max Load Capacity | Static load | 250N/mm² |
| Dynamic load | 140 N/mm² |
Max PV Value Limit | Dry friction | 3.6 N/mm² m/s |
| Oil lubrication | 50 N/mm² m/s |
Max Sliding Speed | Dry friction | 2.5m/s |
| Oil lubrication | 5.0 m/s |
Friction Coefficient | Dry friction | 0.08-0.20 |
| Oil lubrication | 0.02-0.07 |
| Termal Conductivity | 42 W/m k |
| Coefficient Thermal Expansion | 0.00011/K |
Product Description

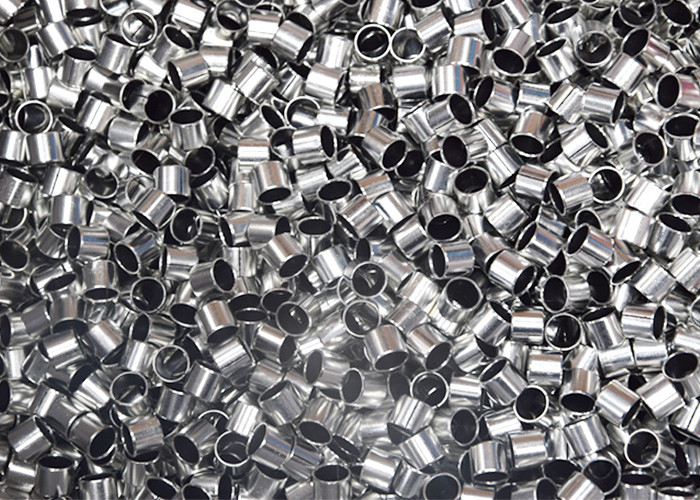

Self lubricating Steel bushings used high quality low-carbon steel
plate as base, sintered porous bronze as its interlayer and the
Compound of PTFE and Lead as its surface. may work without any oil for long period.It offers the property of good self-lubrication, low wear, low
frication, good sliding characteristics, low noise.
It has been widely applied to various mechanical sliding postions,
such as texitile machinery, printing machinery, hydraulic pressure
transit vehicle, tobacco machinery, gymnastic instrument and
agricultural machinery etc.
Product Advantage
1. Dry or only a trace amount of grease or ill will be required.
Maintenance free.
2. Low friction with long life.
3. Load spreads over a wider area due to the elastic nature of the
bearing materials, resulting in a higher loading capacity.
4. The small differences between static and dynamic coefficient of
friction enhance the accuracy of machines operating at low speeds.
5. Low vibration, low noise and reduced-pollution during operation.
6. PTFE and lead can form transfer films onto the mating surface to
improve performance and prevent bushing binding.
Product Application
With the advantages of light weight, low noise and self-lubricating
features, Steel bushings are widely used in the automotive
industrial and the applications are still under fast developing.
Currently, there are over 50 bushings being used in each of the
passenger cars and more and more traditional needle bearing,
sintered bearings are been replacing by the self-lubricating
bushings.
In addition to the bushing, the self-lubricating materials are
applied to the other non-bearing parts such as the new resin coated
air conditioner swash plate and other structure parts had already
developed. Steel self-lubricating materials provide not only
functional parts to the automotive industry but also provide a
solution to this industry for environment protection with the
materials conform with RoHS and REACH regulations.
Company Information
Shaanxi Dewin Technology Co., Ltd was founded in March 2011. We are
dedicated to manufacture and provide high quality and high
performance plain bearing and Powder Metallurgy Sintered metal
components.Under the control of ISO9001 and TS16949,with the
principle of “Preventation” and “continuous improvement”, we
promise to give you real and timely feedback, help you to get
qualified products, integrate and optimize your supply chain.
Packaging and Delivery
Inner Packing: 100 Pieces per Anti-rust plastic film, Vacuum Plastic Bags.
Outer Packing: 1000-2000 Pieces per Hard Carton, Wooden Case, Wooden Pallet.
Shipment Packing: 20 Carton per Wooden Case or Pallet
Shipping Term: By Express, By Air, By Land, By Sea.
Delivery Time: General 10-20 Work Days, (Depends on the Amount)
Delivery Term: FOB, CFR, CIF, EXW
Competitive Advantage
1. We provide products with good quality at competitive price for
clients in quick delivery.
2. 100% custom pass guaranteed.
3. Always immediate and best after-sale service.
4. Flexible and negotiable payment terms.
5. Our clients distribute widely, like in Germany, Norway, Poland,
Finland, Spain, UK, France, Russia,USA, Canada, Brazil, Mexico,
Australia, Japan, Thailand, Indonesia, Uruguay and many other
countries.
